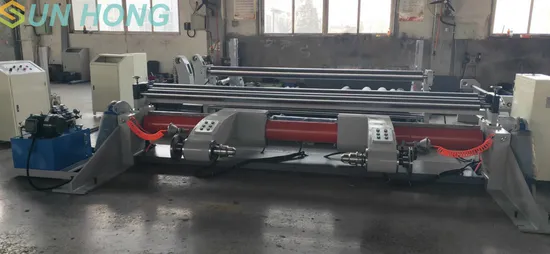

Automatic Jumbo Roll Rewinding Machine

Basic Info

Model NO.	XY-XX-A
Suitable Substrates	Paper
Packaging Material	Wood
Width(mm)	2850
Speed	200-350 M/Minute
Finished Products Diameter(mm)	1200
Slitting Width(mm)	Adjustable
Finished Products Core Diameter(mm)	76.2
Raw Material Size	1200
Raw Material Core Diameter	76.2(Please Specify Other Specifications)
Unwinding Unit	1-3 Layer(Can Be Appointed)
Base Paper Core Shaft	Air-Shaft
Rewinding System	Pneumatic Timing Rewinder
Transport Package	Wooden Pallet
Specification	Depend on the model
Trademark	Xinyun
Origin	China
HS Code	8441100
Production Capacity	200sets/Year

Product Description

XY-XX-A Automatic jumbo roll rewinding machine

High speed full automatic jumbo roll slitting and rewinding machine is the raw material at high speed slitting system, from single ply can be slit and rewound into two, three or four ply paper with various widths, for the production of napkin, hankies, facial or sanitary napkins. The machine is featured of good performance, compact structure, and stable running, and easy operation. The finished products have good winding profiles, which make it a good equipment for the paper mills and textile factories, and a high reputation from the customers. Main function and feature1. Adopt the widen belt on back-stand to increase the friction when feeding paper.

2. Synchronous belt transmission, make it stable-running and less noise even though at high speed operation.3. Equipped with newly fasten unit, making it is convenient to adjust the raw material.

4. With the function of pneumatic paper loading, edge vacuum suction.5. Automatic finished roll discharging, Solve the deformation caused by falls paper phenomenon, save the labor force. (Optional)

6. Easy operation, the finished products have good winding profiles and clean cutter.Video Link:https://youtu.be/RB1BB3viPlg

Model	XY-XX-A
Width(mm)	2850
Speed	200-350 m/minute
Finished products diameter(mm)	φ1200
Slitting Width(mm)	Adjustable
Finished products core Diameter(mm)	76.2
Raw Material size	φ1200
Raw Material core diameter	76.2(Please specify other specifications)
Unwinding Unit	1-3 layer(Can be appointed)
Base paper core shaft	Air-shaft
Rewinding System	Pneumatic timing rewinder
Slitting System	Automatic slitting control
Discharging Unit	Automatic discharging
Edge Cutting Unit	Vacuum suction edge cutting 2.2 KW
Power	Frequency conversion speed regulate 15KWDouble embossing frequency conversion speed regulate 22KW
Pneumatic system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Dimensions(L x W x H)(mm)	9500X4000X2300
Weight	5000~6000kg

Details ImagesFAQQ: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.Packing and ShippingWorkshopAfter Sales ServiesWhy buy Machine from Fujian Xinyun Machinery Development ?1. Good quality of machine with reasonable price.2. Good service: Any question from customer will be reply within 24 hours.For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy.After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.Company InformationFujian Xinyun Machinery Development is good at Paper Converting Machinery Manufacture.Professional supplier of:1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)3) Facial Tissue Machine (2-8 output lanes)4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)6) Pocket Tissue Machine(mini and standard size)7) All kinds of Tissue Paper Cutting and Packing Machine8) Another Household Paper Equipments and Production Line.Welcome to send an "Inquiry" to get more details!
